Sea-Land CN 65-160 A Centrifugal Water Pump 20HP 220/460V 3PH 60Hz 3" x 2.5" – Made in Italy

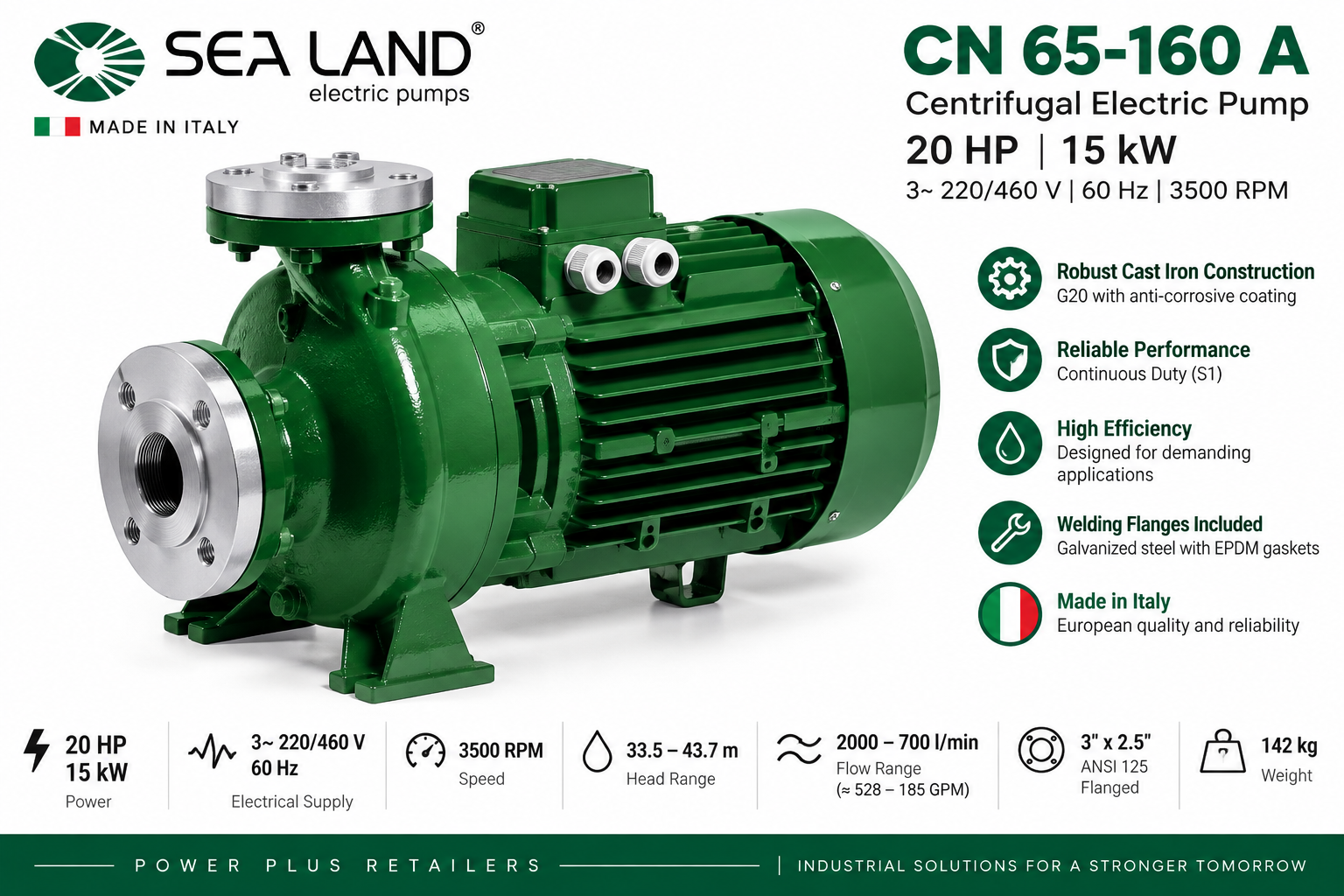

Sea-Land CN 65-160 A 20 HP Industrial Centrifugal Water Pump

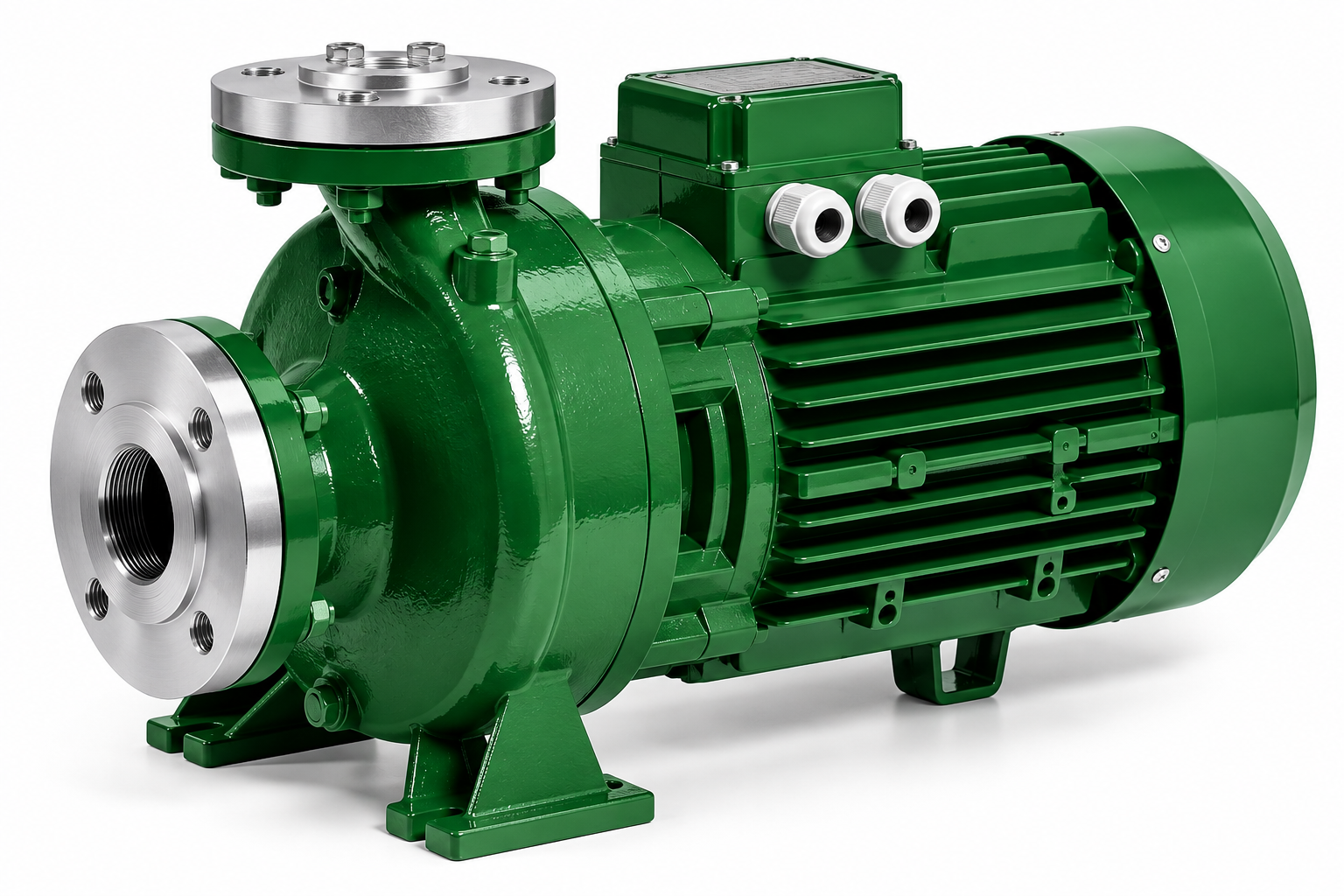

The Sea-Land CN 65-160 A is a heavy-duty, Italian-made centrifugal electric water pump engineered for demanding commercial and industrial water-transfer applications. Powered by a 20 HP (15 kW) three-phase motor, this pump operates at 220/460V, 60 Hz and approximately 3500 RPM.
Its robust construction features a G20 cast-iron pump body with anti-corrosive coating, cast-iron impeller with cataphoretic treatment, AISI 304 stainless-steel shaft, and carbon-ceramic mechanical seal for dependable continuous-duty operation.
The pump features 3-inch suction and 2.5-inch discharge connections, making it suitable for high-flow installations where dependable pressure and continuous operation are required. The supplied technical documentation specifies ANSI 125 connections and includes galvanized-steel welding counter-flanges with EPDM gaskets.
Key Features
- Brand: Sea-Land
- Model: CN 65-160 A
- Pump Type: Centrifugal electric water pump
- Motor Power: 20 HP / 15 kW
- Voltage: 220/460V
- Phase: 3-Phase
- Frequency: 60 Hz
- Motor Speed: 3500 RPM
- Service: S1 Continuous Duty
- Motor Protection: IP55
- Terminal Board Protection: IP54
- Insulation Class: F
- Maximum Fluid Temperature: 35°C / 95°F
- Pump Body: G20 cast iron with anti-corrosive coating
- Motor Bracket: G20 cast iron with anti-corrosive coating
- Impeller: G20 cast iron with cataphoretic treatment
- Pump Shaft: AISI 304 stainless steel
- Mechanical Seal: Carbon/Ceramic
- Connections: ANSI 125 flanged
- Suction: DN80 / 3"
- Discharge: DN65 / 2.5"
- Welding Counter-Flanges: Galvanized steel with EPDM gaskets
- Welding Flanges: Included
- Weight: 142 kg / approximately 313 lb
- Country of Manufacture: Italy
Hydraulic Performance
The manufacturer's documentation specifies an operating head range of approximately 33.5–43.7 meters (110–143 ft). The supplied performance curve should be used to verify the pump against the required flow and total dynamic head of the installation.
Dimensions & Shipping
The pump itself measures approximately:
686 mm L × 290 mm W × 360 mm H
27.0" L × 11.4" W × 14.2" H
Manufacturer-listed packing dimensions are:
880 × 480 × 430 mm
34.65" × 18.90" × 16.93"
Listed Weight: 142 kg / 313 lb
Applications
The CN 65-160 A is designed for high-flow centrifugal pumping applications and is well suited to commercial and industrial water systems, water transfer, irrigation, building services, pressure systems, HVAC-related circulation, and other applications where its published flow/head characteristics meet the system requirements.
Made in Italy by Sea-Land S.r.l.
Important: Three-phase motor protection must be installed by the customer using equipment compliant with applicable standards, as specified by Sea-Land
